新品 アキュムレータ 場所 上海, 中国

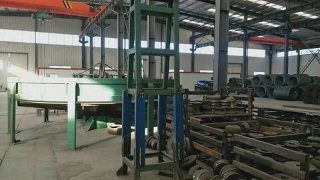

It is used for material storage, loading and unloading and driving strip steel, which is composed of power part, inner ring part, neutral roll part, horizontal roll part, outer ring stop roll part, feed stop roll frame, etc. The driving part is composed of motor, reduction box and universal coupling.The vertical roller and the horizontal roller are made of seamless steel tube no. 45, whose hardness is hrc45-50 after quenching.The support plate is welded with 20 and 30 steel plates.The fan plate is welded with a 4 open plate and a 50×50 Angle iron.Spindle diameter Φ 190, 45 # round steel.Horizontal roller, vertical roller with no. 45 seamless tube, surface quenching treatment hrc45-50.Diameter and 400 mm long, horizontal roller Φ 102.29244E roller bearing for looper spindle, 1 piece;Cylindrical roller bearing NU1036, 1 piece;Deep groove ball bearings 6232,1 piece.
Spiral horizontal accumulator include:
1.Low turnover bracket. Consisted of bracket,horizontal roller and vertical roller.
