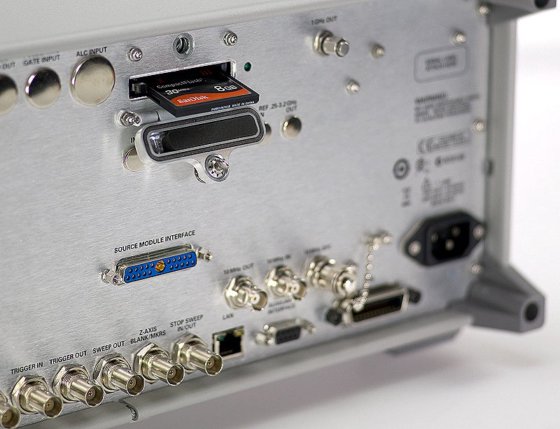

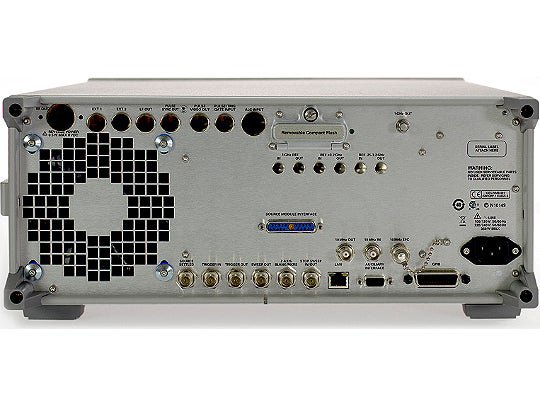

中古 Keysight Technologies E8663D 場所 ハロー, イングランド, イギリス
中古
Doubleclick to zoom in
売り手に連絡
追加の写真や情報を依頼する
仕様
- 状態
- 中古
- High frequency (range)
- 1GHz ＜= 10GHz
- Form factor
- Benchtop
- Low frequency (range)
- 1kHz ＜= 100kHz
- Features
- Parameters
- Frequency
- n/a
- Frequency options
- 3.2, 9 GHz
- Performance level
- ◆◆◆◆◆◇
- Output power @1 ghz
- n/a
- Phase noise @1 ghz (20 khz offset)
- n/a
- Frequency switching (typical)
- n/a
- Harmonics @1 ghz
- n/a
- Iq modulation bw internal/external
- n/a
- Non-harmonics @1 ghz
- n/a
- Sweep mode
- n/a
- Baseband generator mode
- n/a
- Software-general purpose
- AM, FM, PM Pulse Scan
- Software-cellular/wireless connectivity
- n/a
- Software-audio/video broadcasting
- n/a
- Software-detection/positioning/tracking/navigation
- n/a
- Waveform playback memory
- n/a
- Frequency modulation-maximum deviation @1 ghz
- n/a
- Frequency modulation-rate @100 khz deviation
- n/a
- Phase modulation-maximum deviation
- n/a
- Phase modulation-maximum deviation in high-bw mode
- n/a
- Amplitude modulation-maximum depth
- n/a
- Amplitude modulation-rate
- n/a
- Applications available
- Yes
- Analog
- Yes
- E8663d
- High-performance analog signal generator offers high output power, low phase noise, and tunes over a frequency range from 100 kHz to 9 GHz for radar systems, satellite evaluation, and when a low noise local oscillator is required.
- E8257d
- Metrology-grade analog signal generator offering industry-leading output power, level accuracy, and phase noise, with frequency coverage from 100 kHz to 67 GHz (extendable to 500 GHz) for testing advanced RF and microwave radar.
- E8267d
- Integrated high-performance microwave vector signal generator covers frequencies from 100 kHz to 44 GHz (extendable to 500 GHz) for design and manufacturing in aerospace defense, satellite communications, and broadband wireless.
- カテゴリー
- 電子テストジェネレータ 場所 イギリス
- サブカテゴリ―
- Test equipment
- サブカテゴリ― 2
- Rf generators <17 ghz
- サブカテゴリ― 3
- Rf & microwave signal generators
- リスティングID
- 65897303
説明

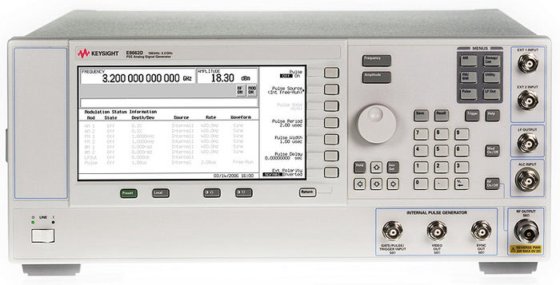

PSG RF Analog Signal Generator; 100 kHz to 9 GHz
High-performance analog signal generator offers high output power, low phase noise, and tunes over a frequency range from 100 kHz to 9 GHz for radar systems, satellite evaluation, and when a low noise local oscillator is required.
The E8663D analog signal generator provides the industry’s lowest phase noise available in an off-the-shelf signal generator. With optional analog modulation (AM, FM, ØM, and pulse) capability, superior level accuracy and high output power, the E8663D is the right choice for demanding applications such as radar system development, satellite communications evaluation, or when a very low noise local oscillator or reference signal is needed. Built on the outstanding legacy of the 8663A, the E8663D delivers improved performance and is fully code compatible with its predecessor for seamless upgrades to existing test systems. Enhanced narrow pulse modulation and extended support life are optionally available.
