中古 Keysight Technologies E3645A 場所 ハロー, イングランド, イギリス
中古
Doubleclick to zoom in
売り手に連絡
追加の写真や情報を依頼する
仕様
- 状態
- 中古
- Feature
- Parameter
- Output ratings (@ 0°c to 40°c)
- Range 1: 0 to 35 V / 2.2 A Range 2: 0 to 60 V / 1.3 A
- Programming accuracy (@ 25°c ±5°c), ±(% output + offset)
- Voltage: ＜ 0.05% + 10 mV (＜ 0.1% + 25 mV for output two of Keysight models E3646A, E3647A, E3648A, E3649A Current: ＜ 0.2% + 10 mA
- Ripple & noise (20 hz to 20 mhz)
- Normal mode voltage: ＜ 8 mVpp / 1 mVrms Normal mode current: ＜ 4 mArms
- Readback accuracy (@ 25°c ±5°c), ±(% output + offset)
- Voltage: ＜ 0.05% + 5 mV (＜ 0.1% + 25 mV for output two of models E3646A, E3647A, E3648A, E3649A) Current: ＜ 0.15% + 5 mA (＜ 0.15% + 10 mA for output two of models E3646A, E3647A, E3648A)
- カテゴリー
- AC/DC電源 場所 イギリス
- サブカテゴリ―
- Test equipment
- サブカテゴリ― 2
- Power supplies & electronic loads
- サブカテゴリ― 3
- Power supplies / electronic loads
- リスティングID
- 65897531
説明

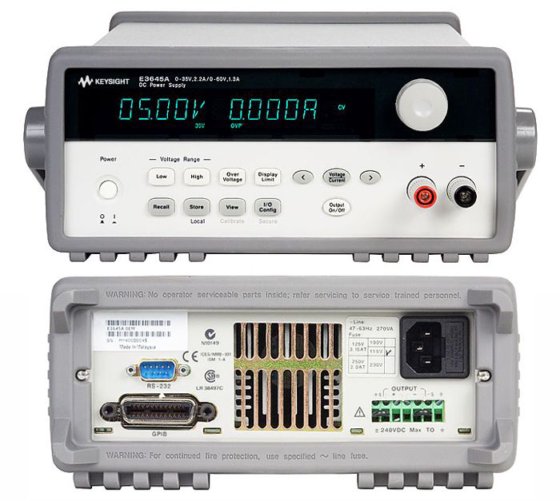

DC Power Supply; 35 V, 1.3 A or 60 V, 2.2 A, 80W
The E3640A Series bench power supply gives you outputs from 30 W to 100 W of power along with dual range flexibility. Each output has a low and high voltage range. The low voltage range allows the power supply to output more current. The series also has models with one and two outputs – tracking is turned on or off to allow the two outputs to operate independently or work as a pair.
The E3645A 80 W bench power supply has dual-range flexibility with a low and high voltage range. The low voltage range allows the power supply to output more current. The E3640 Series has models with single and dual outputs—automate tests with GPIB or RS232.
Key Features
Low output noise with ripple and noise ＜ 500 µVrms
Stable output, load regulation ＜ 0.01%
Meter accuracy better than 0.05%
Store and recall up to five different operating states
Highly visible vacuum fluorescent display
One or two channels
Connectivity: RS232 and GPIB
Specifications
