中古 Keysight Technologies E4980A 場所 ハロー, イングランド, イギリス
中古
Doubleclick to zoom in
売り手に連絡
追加の写真や情報を依頼する
仕様
- 状態
- 中古
- High frequency (range)
- 1MHz ＜= 10MHz
- Frequency
- 20 Hz to 2 MHz, with 4-digit resolution in any range; see the E4980AL Precision LCR Meter for lower price with 300 k / 500 k / 1 MHz frequencies
- Basic accuracy
- 0.05% basic accuracy with superior measurement repeatability at low and high impedance
- Dc bias
- DC Bias Enhancement (Option 001) Rdc measurements (Option 200)
- Features
- 20 Vrms test signal (Option 001) High-speed measurements: 5.6 ms 201 points list sweep Versatile PC connectivity (LAN, USB and GPIB)
- E4980a
- 20 Hz to 2 MHz
- サブカテゴリ―
- Lcr meters
- サブカテゴリ― 2
- Test equipment
- サブカテゴリ― 3
- Lcr & impedance analyzers
- サブカテゴリ― 4
- Lcr / impedance analyzers
- リスティングID
- 65898773
説明

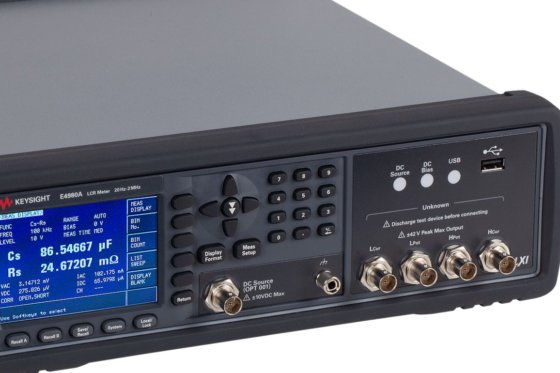

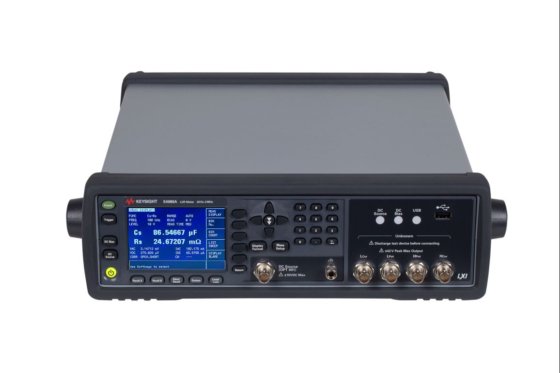

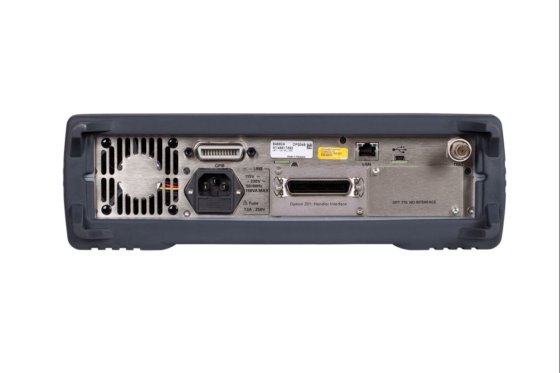

Precision LCR Meter; 20 Hz to 2 MHz
The E4980A precision LCR meter provides the best combination of accuracy, speed, and versatility for a wide range of component measurements. Offering fast measurement speed and outstanding performance at both low and high impedance ranges, the E4980A is the ultimate tool for general R&D and manufacturing test of components and materials. LAN, USB and GPIB PC connectivity enhances your design and test productivity.
Key Features
Frequency
20 Hz to 2 MHz, with 4-digit resolution in any range;
see the E4980AL Precision LCR Meter for lower price with 300 k / 500 k / 1 MHz frequencies
Basic Accuracy
0.05% basic accuracy with superior measurement repeatability at low and high impedance
DC bias
DC Bias Enhancement (Option 001)
Rdc measurements (Option 200)
Features
20 Vrms test signal (Option 001)
High-speed measurements: 5.6 ms
201 points list sweep
Versatile PC connectivity (LAN, USB and GPIB)
Specifications
Frequency Options
Model
Description
E4980A
