中古 Viavi E8136B 場所 ハロー, イングランド, イギリス
中古
Doubleclick to zoom in
売り手に連絡
追加の写真や情報を依頼する
仕様
- 状態
- 中古
- Wavelength
- 1310/1550/1625nm
- Form factor
- Modular
- E8146a
- 850/1300/1310/1550 nm OTDR module(2)
- E8156a
- 850/1300/1310/1550/1625 nm OTDR module(2)
- E8126b
- 1310/1550 nm OTDR module
- E8136b
- 1310/1550/1625 nm OTDR module
- E8115c
- 1550 nm OTDR module(1)
- E81162c
- In-service 1625 nm OTDR module(1)
- E81165c
- In-service 1650 nm OTDR module(1)
- E8126c
- 1310/1550 nm OTDR module
- E8136c
- 1310/1550/1625 nm OTDR module
- E8139c
- 1310/1490/1550 nm OTDR module
- E8138c-65
- 1310/1550 and in-service 1650 nm OTDR module
- E8115d
- 1550 nm OTDR module(1)
- E81162d
- In-service 1625 nm OTDR module(1)
- E81165d
- In-service 1650 nm OTDR module(1)
- E8126d
- 1310/1550 nm OTDR module
- E8129d-62
- 1550/1625 nm OTDR module(1)
- E8136d
- 1310/1550/1625 nm OTDR module
- Eunipcfc, eunipcsc, eunipcst, eunipcdin
- Straight connectors
- Euniapcfc, euniapcsc, euniapcdin
- 8° angled connectors
- カテゴリー
- 電気・電子部品 場所 イギリス
- サブカテゴリ―
- Test equipment
- サブカテゴリ― 2
- Network & fiber installations
- リスティングID
- 65904357
説明

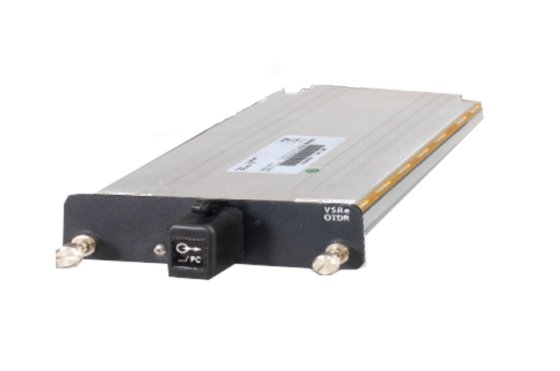

OTDR Module; 1310nm/1550nm/1625nm
8100-Series OTDR EVO Modules; For T-BERD/MTS-6000A/-8000 Platforms.
The VIAVI Solutions 8100-Series OTDR EVO family transforms fiber testing. Connect the OTDR EVO family anywhere on the fiber to characterize single-mode and multimode fibers for commissioning, network upgrades, and troubleshooting with the added insurance of workflow optimization and accurate fiber-link fingerprinting.
Key Features:
Up to 50 dB dynamic range
Integrated CW light source and broadband power meter (single-mode wavelengths)
PON-optimized to test through a 1x128 splitter
Single connector port for 1310, 1550, and inservice 1650 nm wavelengths
FiberComplete™ version available for automated bidirectional OTDR, IL, and ORL measurements
Built-in encircled flux multimode source compliant with IEC 61280-1-4 and TIA-526- 14-B
Benefits:
Industry-leading dead zone performance for full element event characterization on fiber links 2 m apart
