新品 Innovo Bochen ZX-850B 場所 ジョ州市, 安徽省, 中国

仕様

状態
新品
最小スロットピッチ
20mm
Max.slot
5ストリップス
ボックスの最小高さ
15mm
横段ボールサイズ
120-850mm
縦型段ボールサイズ
≥150mm
モーターパワー
1.5kw/220v 1フェーズ
スピード
15-25m/min
マシン重量
550kg
マシンディメンション
1100*1400*1500mm
ブランド
イノボ
パッケージング
木造梱包
生産性
30sets/month
輸送
海洋
原産地
中国(浙江省)
供給能力
20セット
証明書
国際標準化機構
支払いタイプ
T/T、L/C、ウェスタンユニオン
1.environmental protection
クリーンでノイズがない。
5.wide use
は、段ボールやMDFのV溝加工に使用できる。
簡単操作
1 のデジタル提示と特色にされるスロットの間隔を調節するために装置を調節して下さい。 2、マニュアルは、幅を調整するブロックを調整します。 3、緩みやネジを締めることによってナイフを固定または固定解除;研削中にナイフをアンロードする必要はありません。
サブカテゴリ―
ギフトボックス製造機
サブカテゴリ― 2
メイキングボックス 機器
リスティングID
68456606

説明

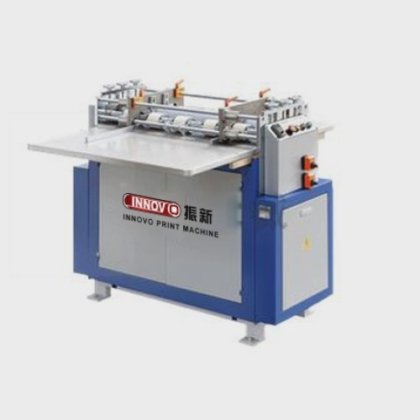

ZX-850B Semi-automatic cardboard grooving machine
Product performance:
2.Adjust the slot distance with numerical hand wheel.
3.Convenient to lade and unload tools, and to blade knife without unloading.
4.Grinder has been installed with angle adjustment devise which makes grinding fast and accurate and without any requirements for workers.

Product features:
4,The matched knife grinder is able to grind blade from various angle without technical. Low cost: 1. The motor power is only 1.5KW, the lowest in China at present. 2. The blade can be grinded 80-100 times; after grinded it can be used 8000-10000 times with gray cardboard, And 12000-15000times with fibreboard. 3. New and used knife can work at the same time. 4. Lower slary is needed compared with a dust machine. Good product: 1. It can slot"#"shape on cardboard, and"="shape on fibreboard. 2. The blade can be grinded in an accurate angle(max to 150o); slots' distance precision is±0.1mm;

売り手に価格を問い合わせる

メーカー
Innovo Bochen
型番
ZX850B
場所
🇨🇳 ジョ州市, 安徽省, 中国
