新品 スラグ、採石場のための 4 つのデッキの振動スクリーニング機械 場所 鄭州市, 河南省, 中国
新しい
Doubleclick to zoom in
売り手に連絡
追加の写真や情報を依頼する
仕様
- 状態
- 新品
- 原産地
- 中国
- 認証
- CE/ISSO9001
- ドキュメント
- 製品カタログPDF
- 最小発注量
- 1 set
- パッケージ内容
- 水と錆に強い木箱またはコテナー入り
- 支払条件
- T/T、ウェスタンユニオン、L/C
- 供給能力
- 月10セット
- 名前
- 振動ふるい機
- モーター
- ACモーター
- アプリケーション
- 鉱石、スラグ、採石場の採掘
- ディメンション
- 5570mmx3086mmx3296mm
- 電圧
- 380V,220V/380V,Customized
- 重量
- 4段振動スクリーン
- 層
- 1-4 層（カスタマイズされるように）
- 商品名
- 回転振動ふるい機/ミニ振動ふるい機
- ハイライト
- 4 つのデッキの振動スクリーニング機械、スラグ振動スクリーニング機械、採石場の振動スクリーニング機械
- モデル
- 層; スクリーンの穴のサイズ（mm）; 最高の供給のサイズ（mm）; 振動頻度（r/mm）; スクリーンの斜面（0°）; 容量（t/h）; モーター力（Kw）
- 3yk1230
- 3; 3-50; < 200; 800-970; 20; 12-120; 5.5
- 3yk1336
- 3; 6-50; < 200; 970; 20; 15-160; 11
- 3yk1548
- 3; 5-80; < 200; 970; 20; 50-250; 15
- 3yk1848
- 3; 5-80; < 200; 970; 20; 50-300; 18.5
- 3yk1860
- 3; 5-80; < 200; 970; 20; 50-350; 22
- 3yk2160
- 3; 5-100; < 200; 730; 20; 100-500; 30
- 3yk2460
- 3; 5-150; < 200; 730; 20; 150-700; 30
- 3yk2770
- 3; 5-150; < 200; 730; 20; 200-800; 30*2
- 4yk1548
- 4; 5-80; < 200; 970; 20; 50-250; 18.5
- 4yk1848
- 4; 5-80; < 200; 970; 20; 50-300; 22
- 4yk1860
- 4; 5-80; < 200; 970; 20; 50-350; 22
- 4yk2160
- 4; 5-100; < 200; 730; 20; 100-500; 30
- 4yk2460
- 4; 5-150; < 200; 730; 20; 150-700; 37
- 4yk2770
- 4; 5-150; < 200; 730; 20; 200-800; 30*2
- サブカテゴリ―
- 振動ふるい機
- リスティングID
- 91314753
説明

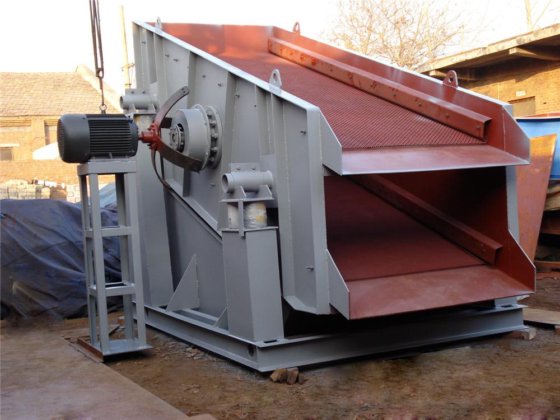

Four Deck Vibrating Screening Machine For Slag , Quarry
The Vibrating Screening Machine with circular motion is specially designed for quarry to separate crushed stone material into different sizes, and is also used as a grading machine in coal dressing, ore dressing, construction material, electric and chemical industries.
Working principle
There are two eccentric shafts rotating at high speed at the same time from opposite directions, thus the strong centrifugal force is formed. The component forces of centrifugal force along the vibrating direction will always overlap each other, then counteract with that of vertical force from vibrating direction, then exciting force along single direction is formed to drive the feeder vibrate along straight line. When materials are fed into the feeder, they may be thrown up and move like para curve, then fall down. The materials will move forward on the slope surface of the feeder.
Main features
1.Stable performance and high screening efficiency
