新品 T30 CNCタレットパンチングマシン 自動穴あけ機 場所 南京市, 江蘇省, 中国
新しい
Doubleclick to zoom in
売り手に連絡
追加の写真や情報を依頼する
仕様
説明
Description

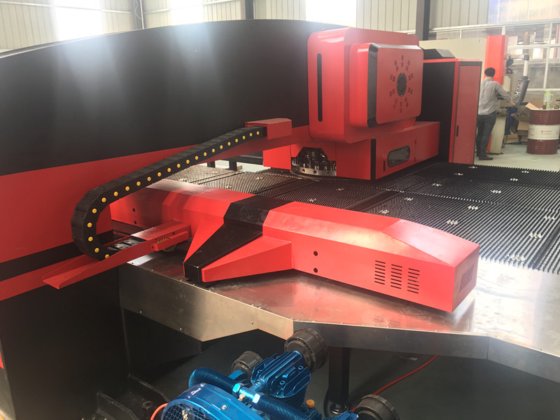

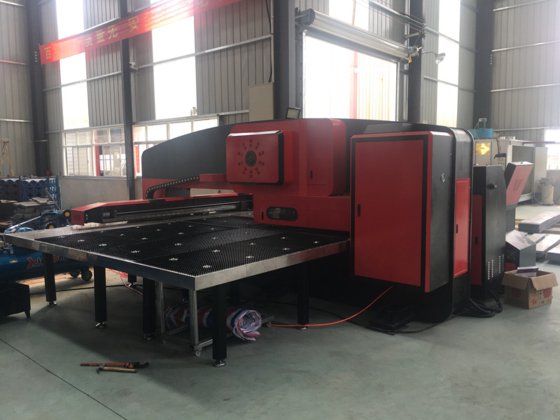

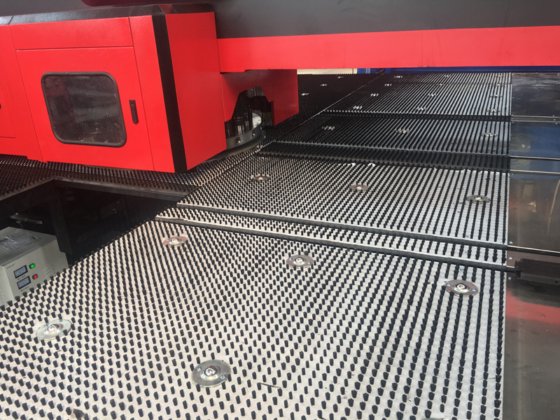

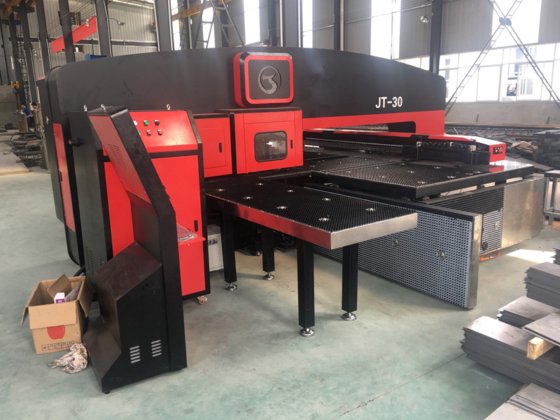

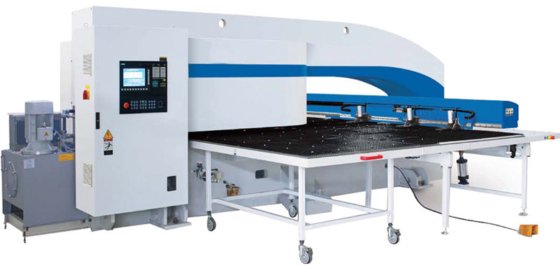

T30 CNC Turret Punching Machine Automatic Hole Punching machine
Brief Introduction
Specifications
1. Nominal force KN 300
2. Workpiece size mm 1250×2500
Max workpiece weight Kg 156
4. Max workpiece thickness mm 6.35
5.Max punch diameter mm 88.9
6.Number of stations 32
Working accuracy mm ±0.1
Max. hit speed HPM 600
Workpiece traveling speed m/min 106
Turret speed r/min 30
Frame construction Closed-type
Throat mm 1275
Number of control axis 4 axes (X, Y, T, C)
Max rotary station punching diameter mm 50.8
Repeatability mm 0.02
Number of clamp 2
Clamp type Pneumatic type
Heat treatment of the frame Tempering
Tool type Long guide sleeve type
(AMADA)
Turret construction Long bushing in the thin turret
Air pressure Mpa 0.6
Machine dimension (L*W*H) mm 4800*2700*2200
Machine weight kg 17500
2. Machine Feature
1.
