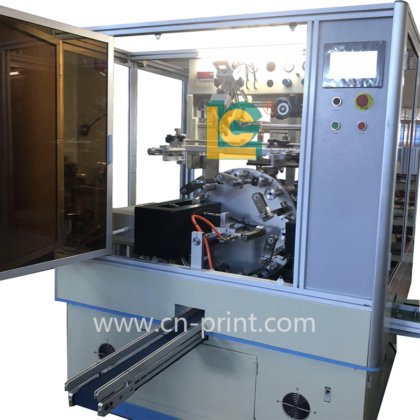

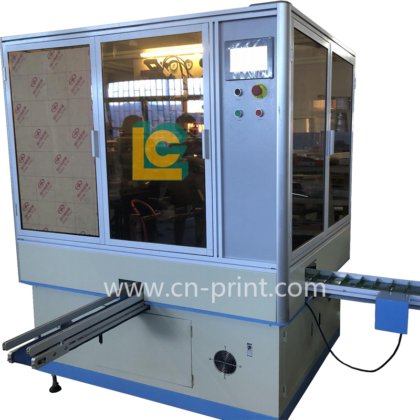

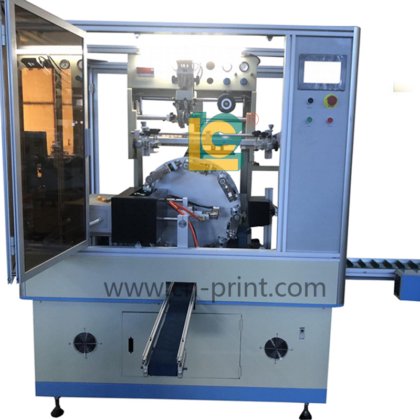

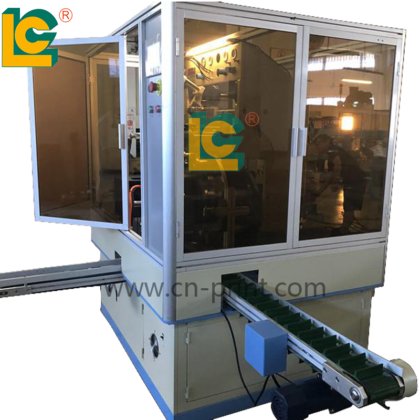

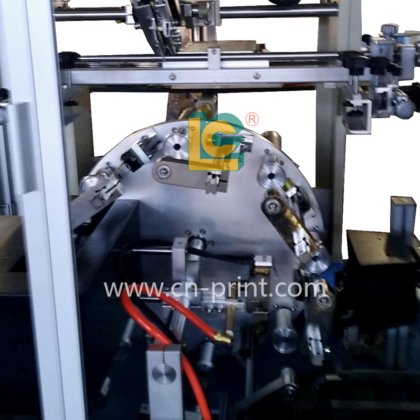

新品 ガラス瓶1色自動UVスクリーン印刷機 場所 東莞市, 広東省, 中国
新しい
Doubleclick to zoom in
売り手に連絡
追加の写真や情報を依頼する
仕様
- 状態
- 新品
- ブランド名
- LC
- 単価
- US $ 32800 /ユニット
- 最低注文数
- 1台
- 価格条件
- EXW,東莞,中国
- 梱包
- 合板ケース
- リードタイム
- 支払確認後60日
- 規格証明書
- シーイー
- 適用エリア
- ガラス瓶
- アイテム
- 仕様
- 最高印刷速度
- 3200個/時間
- 印刷領域
- 50mm×150mm
- ボトルの高さ
- 20 mm < 高さ < 150 mm
- ボトル径
- 10 mm < 直径 < 60 mm
- 紫外線ランプのパワー
- 4 KW
- 主な機械サイズ
- 1500mm×1180mm×1900mm
- マシンカバー面積
- 2600 mm x 3600 mm x 2000 mm
- マシン重量
- 1100 kg
- 給気
- 5～7バール
- エア消費
- 100リットル/分
- 電源
- 380 V、3相、50Hz
- 消費電力
- 4.5 kw
- Https
- // /2_5uKA_-eZc
- カテゴリー
- スクリーン印刷 場所 中国
- サブカテゴリ―
- 印刷
- サブカテゴリ― 2
- カップ/チューブ/リップスティック/シリング印刷ライン
- リスティングID
- 95717778
説明
Product Description
Features
The biggest feature of this machine is especially for glass bottles, aluminum bottles, stainless
steel bottles without positioning points. The clamp rotates as a whole, and the bottle does not
move. Ensure that the bottle is not thrown out, broken or moved. Can add German sensors,
multicolor overprint. High speed printing, the speed can be at least 50pcs/min.
One color automatic UV screen printer with photoelectronic sensors
Japan Fuji servo and Japan Hitachi PLC system,And the German Leuze color sensor is used to recognized the print position.
One color automatic UV screen printer with photoelectronic sensors video
One color automatic UV screen printer with photoelectronic sensors specifications
One color automatic UV screen printer with photoelectronic sensors Advantages:
1.Specially design for glass bottle, metal bottle, plastic bottle automatic UV screen printing
2.Servo optical fiber indexing is possible to do multi-colors printing and overpint for some applications
3.The machine integrates automatic feeding device, flame treatment, automatic direction detect ice device and UV curing system and so on
4. It combines mechanical driven with pneumatic driven, and LED display. The maximun printing capacity of the machine is 3200pcs/hr.
5. This system is equipped with various warning devices such as low pressure and Overloading.The sensor can detect “no product,no printing”.
6. The electrical components and control system adopt from Japan and Germany, ensure good printing quality
7. We provide machine design and construction services for special aplication
One color automatic UV screen printer with photoelectronic sensors fitting:
1. One set fixture for the product
2. One screen frame
3. One operation manual.
Our Services
16 hours online services
8:00 am--12:00pm (Monday- Saturday)
24 hours phone call services (Monday- Sunday)
In order to benefit good rights and interests for our customers, we have done the testing strictly before the machine exports; try to provide the best after-sales service for our customers.
Company Purpose: The best quality, leading technology, and provide the best product and service for our customers.
Shoule need more information about ourone color automatic screen printer for 12mm diameter test tube or other machines please contact wiht us
