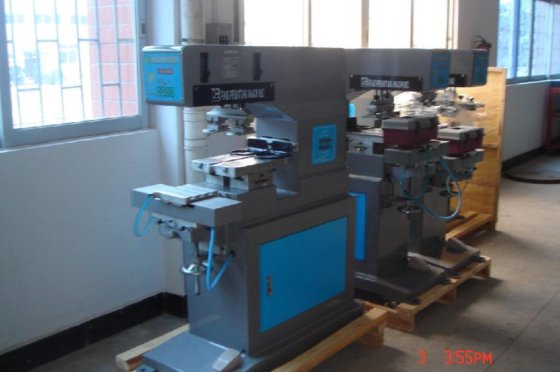

新品 2-Colour Conveyor Pad Printer &Auto water process system 場所 東莞市, 広東省, 中国
新しい
Doubleclick to zoom in
売り手に連絡
追加の写真や情報を依頼する
仕様
- 状態
- 新品
- ブランド名
- LC
- 最低注文数
- 1 pc
- 価格条件
- EXW DongGuan
- 適用エリア
- 自動PPクリアリングリキッド
- フリーフィッティング
- 2枚のシリコンパッド
- H.s.code
- 8443198000
- 空気圧
- 6 Bar
- 9. マシンのサイズ
- 1000x700x1420mm(LxWxH)
- カテゴリー
- パッド印刷 場所 中国
- サブカテゴリ―
- Printing
- サブカテゴリ― 2
- Special pad printer
- リスティングID
- 95717962
説明

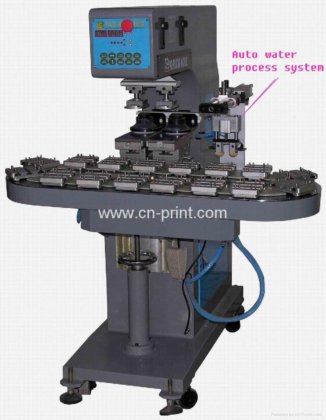

This installation can be equiped in any pad printing machine
There is automatic erasion PP liquid device in the pad priting machine. So it can automatic erase PP water for product before printing. It is improved from manual erasion PP water,enhance printing quality and speed.
1.Controlled by microprocessor,easy operation,running stably and accurately.
2.4-digit auto counter built-in.
3.Cast aluminum machine frame,low weight and high intensity,turnable machine head.
4.Separate adjustment of the pad up/down stroke speed.
5.Ink scraper is auto balance keeping in printing.
6.With the function of ink scraping nonstop without printing in order to prevent ink from drying.
7.Ink cup is turnable and adjustable in vertical and horizontal direction.
8.Super long slide stroke to print large size workpiece.
9.Speed of every single pneumatic organ is adjustable.
Specifications
1．Model NO ：
LC-
SPM2
-N/16T
2．operation ：pneumatic
3．Printing Colors：2
4．Plate area ：100*200 mm2 100*250 mm2 100*300 mm2
5．Sealed ink cup diameter：￠90mm
6. Max printing speed：2000PCS/H
7．Wattage：220V/ 50HZ 110V/60HZ
10. Machine weight ：180kg
Free Fitting :
1.one pcs pad steel plate
2.one pcs silicone rubber pad
3.one pcs jig
4.tooling box
5.Englishi specifications
