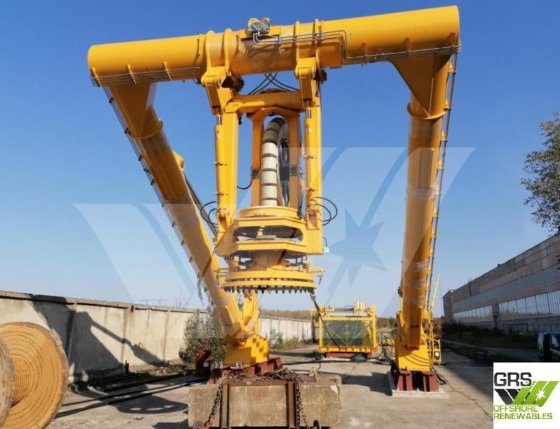

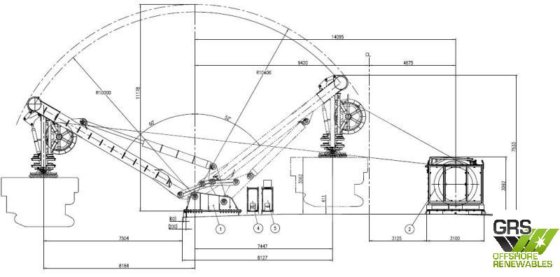

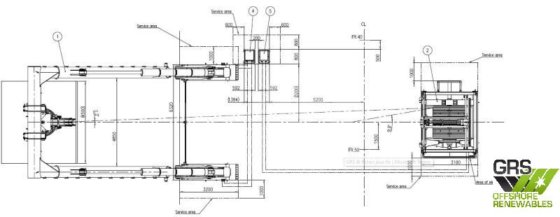

中古 Aフレーム アンビリカルウインチ 13トン / Aフレーム 販売中 / 場所 ハンブルク, ハンブルク州, ドイツ

Type Hydraulically driven winch
Certification/standard Designed in accordance with DNVGL-ST-0378
Dynamic Amplification Factor 1.7
Safe Working Load SWL 13 Tons
Dimensions Length 3200mm, Width 4200mm, Height 2800mm
Weight 20 000 kg
Operating temperature -10°C up to +45°C
Drum Storage capacity 1650m (based on 44,0mm diameter umbilical cable)
Drum configuration Parallel-groove drum shells (LEBUS)
Speed 30m/min
Level-wind Automatic
Slip ring Focal 176, Not included
Controls
Local, remote
Local control
- Pay-in / out
- Level-wind auto/manual
- Level-wind left / right
- Emergency stop
- Remote control switch
- Pay-out length Reset
- HPU running (indication)
- System Fault (indication)
- Pay-out length (indication)

Remote control
- Pay-in / out
- Emergency stop
- Pay-out length Reset
- Pay-out length (indication)
LOA 11.6 m
Beam 6 m
